DL DIN PLUG TYPE

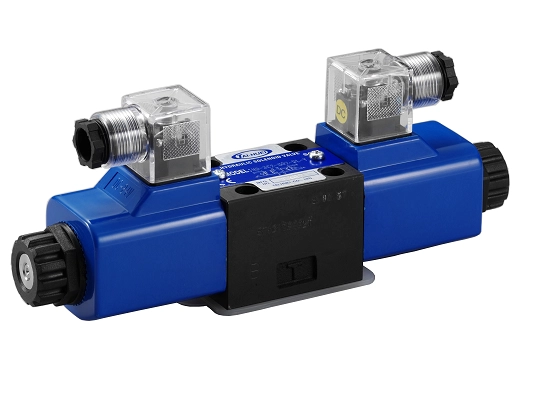

HD-***-G02-**-YV-DC ----IP65
Description of Model
HD | *** | G02 | LW/DL | |
Directional Control Valve | Spool type | Nominal Valve Size | Wiring Connection Type | |
High Flow Directional Control Solenoid Valve | See “List of Spool Function” in Technical Support | G02 1/4” | Box type | Din type |
D03 | ||||
NG06 | ||||
CETOP3 | ||||
Y/YV | V | Performance | ||||
Series No. | Voltage(V) | Model Spec. | Y | YV | ||
Voltage(V) | 12 | 24 | 24 | |||
Y series High Efficiency and Low Current for DC Solenoid Directional Control Valve HD-G02-Y-D | DC12 | DC24 | Holding Current(A | 1.68 | 1.16 | 0.69 |
YV series High Efficiency and Low Temperature Low Current for DC Solenoid Directional Control Valve HD-G02-YV-DC | DC24 | Pressure Range (KG) | 70~250 | 70~250 | <70 | |
Temperature Rise Performance of Y and YV
1. The operational pressure is 70kgf/cm² in the coil temperature test.
2. The test is at a constant temperature of 25°C.
3. Using DC24 coil for this test.
The Features of Y and YV Solenoid Valve
1. Dual line tank design reduces the pressure drop resulting in better flow characteristics.
2. The spool’s design is the increased size and can improve the better flow characteristics Huge increasing of back-pressure allowable and lower internal resistance.
3. New type of magnetic coil and tube combination, enable the solenoid valve can lower the temperature effectively during operation.
4. New special design type of coil can lower current effectively, even energy-saving.
5. Y and YV series solenoid valves can start with 20VDC.
6. YV series will maintain a low coil temperature and a low current usage.
Notes
1. The feature and function of Y/YV series coils are only for the G02 DC solenoid valve series.
2. The Y & YV coil color difference is that the YV coil is BLUE and the Y coil is Black.
Dimensions
G02/D03 Series How to Order
- Step 1: Spool Type
- Refer to Spool Configuration Chart
- Step 2: Coil Voltage
- AC / DC / Special Voltage
- Step 3: Wiring/Connection Method
- LW (TERMINAL BOX TYPE)
- DL (DIN PLUG TYPE)
- DT (DEUTSCH CONNECTOR TYPE)
- 2W (2W TWO WIRES TYPE)
- M4 (M12 4-Pin)
Common Spool Configurations
