HD-***-G02-LW-*-DC (One-Way) | LW TERMINAL BOX TYPE

Table of Content

LW TERMINAL BOX TYPE

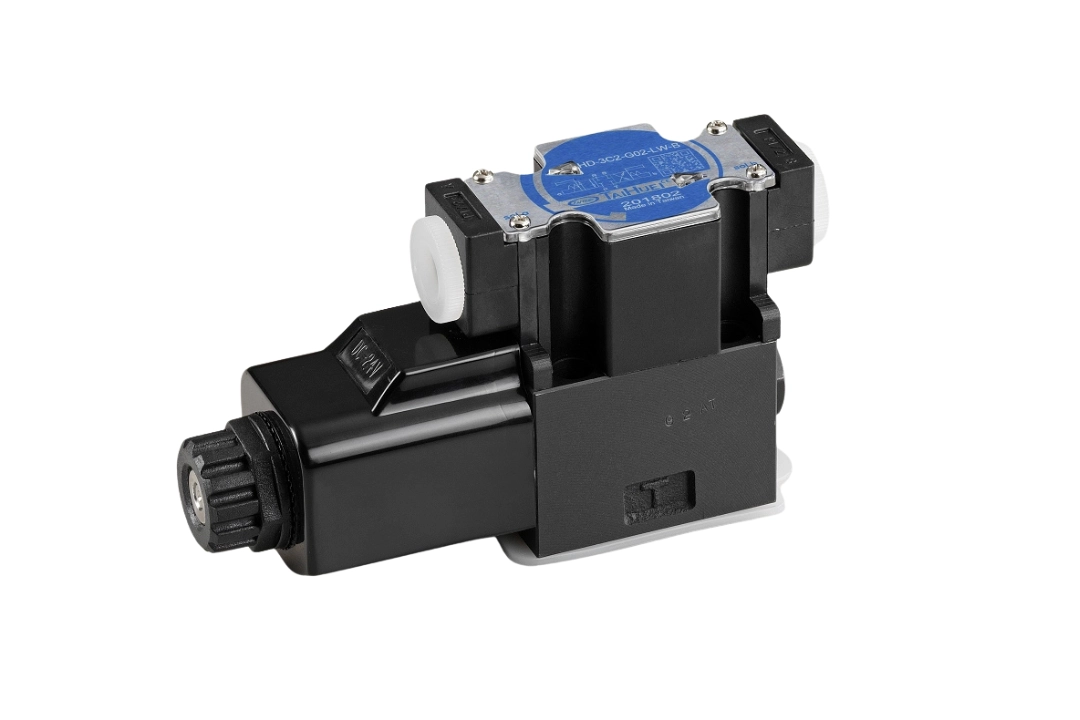

HD--G02-LW--DC (One-Way) ----IP65**

Description of Model

HD	*******	G02	LW
Directional Control Valve	Spool type	Nominal Valve Size	Wiring Connection Type
High Flow Directional Control Solenoid Valve	See “List of Spool Function” in Technical Support	G02 1/4”	Box type
		D03
		NG06
		CETOP3

B/E		DC
Series No.		Coil Voltage (V)
B	E	DC12	DC24
High Efficiency and Low Current Directional Control Solenoid Valve	Standard High Flow Wet Pin Design Valve

Notes

1. Please refer to “Features of Coil” for the electromagnetic coil.

2. When selecting the tapered plug applied into valve port to reduce flow rate, please indicate the hole size(mm) of the tapered plug.

3. When selecting A/B/AB adjustment type, please refer to the table of “Statement of Model No. of Proportional Adjustment & Manual Switch Installed Solenoid Valve”.

4. B-type valve can reduce current effectively, even energy-saving.

5. B-type valve can reach the high flow and pressure as the same as E-type.

6. Low temperature raise and can increase the life of hydraulic components.

7. All valves are with wider port size to improve the flow capacity.

8. The B/E solenoid valves conform to the international standard and totally interchangeable.

Features of Coil

Model Specification		HD-G02
		DC
Voltage (V)		12	24
Holding Current (A)	B type	1.72	1.05
	E type	2.6	1.3
Protection Class		IP67
Coil insulation Class		PEWH class
Maximum Tolerable Temperature		180°C

Notes

1. All the coils can be operated within ±10% the rated voltage.

2. Special voltage requirements are also available.

The Features of B and E Solenoid Valve

1. Dual line tank design reduces the pressure drop resulting in better flow characteristics.

2. The spool’s design is the increased size and can improve the better flow characteristics Huge increasing of back-pressure allowable and lower internal resistance.

3. New special design type coil can lower current effectively, even energy-saving, also able to reach the high flow and pressure as the same as E type. Please refer to “Pressure drop curve” for a reference.

4. The valve’s feature and dimensions are as the same as E-type.

5. The B-type solenoid valve will improve your product quality and increase the company’s competitiveness.

Pressure Drop Curve (measured at v = 38mm²/s and temp. = 50°C)

Model No.	Pressure Drop Curve Number					Max Allowable Back Pressure
Model No.	P→A	B→T	P→B	A→T	P→T	kgf/cm²
HD-2B2-G02	(5)	(5)	(2)	(2)	-	120
HD-2B3-G02	(4)	(4)	(2)	(1)	-	120
HD-2B8-G02	(2)	-	(2)	-	-	100
HD-3C2-G02	(2)	(2)	(2)	(2)	-	110
HD-3C3-G02	(1)	(1)	(1)	(1)	(3)	130
HD-3C4-G02	(2)	(1)	(2)	(2)	-	100
HD-3C40-G02	(2)	(2)	(2)	(2)	-	80
HD-3C60-G02	(6)	(6)	(6)	(6)	(3)	90
HD-3C9-G02	(1)	(2)	(1)	(1)	-	100
HD-3C10-G02	(2)	(1)	(2)	(2)	-	100
HD-3C11-G02	(1)	(2)	(2)	(2)	-	100
HD-3C12-G02	(2)	(2)	(2)	(2)	-	100
HD-2D2-G02	(2)	(5)	(2)	(2)	-	110

Statement of Feature

Model	HD-G02
Performance	Max Pressure (kgf/cm²)	Allowable Back-Pressure (kgf/cm²)	Max Flow (L/min)	Conversion Frequency (Cycle/min)	Hydraulic Oil Temperature Range (°C)	Hydraulic Oil Viscosity Range (cst)
	315	70~160	60	AC、DC: 240	-15~+70	10~400(ISOVG46,68)
				RF-N-S: 120

Notes

1. Non-spring type valve should be installed horizontally.

2. Installation surface and valve surface should be keeping under 3.2z surface roughness.

3. Please do not change the parts of solenoid valve by yourself.

4. If the spool’s sizes are different, that can’t interchangeable.

Accessories

1. G02: Screw of main body M5 x 45L…..4pcs

2. DL type coil socket with protective cover.

3. Main body with sub plate.

Dimensions

G02/D03 Series How to Order

Step 1: Spool Type
- Refer to Spool Configuration Chart
Step 2: Coil Voltage
- AC / DC / Special Voltage
Step 3: Wiring/Connection Method
- LW (TERMINAL BOX TYPE)
- DL (DIN PLUG TYPE)
- DT (DEUTSCH CONNECTOR TYPE)
- 2W (2W TWO WIRES TYPE)
- M4 (M12 4-Pin)
