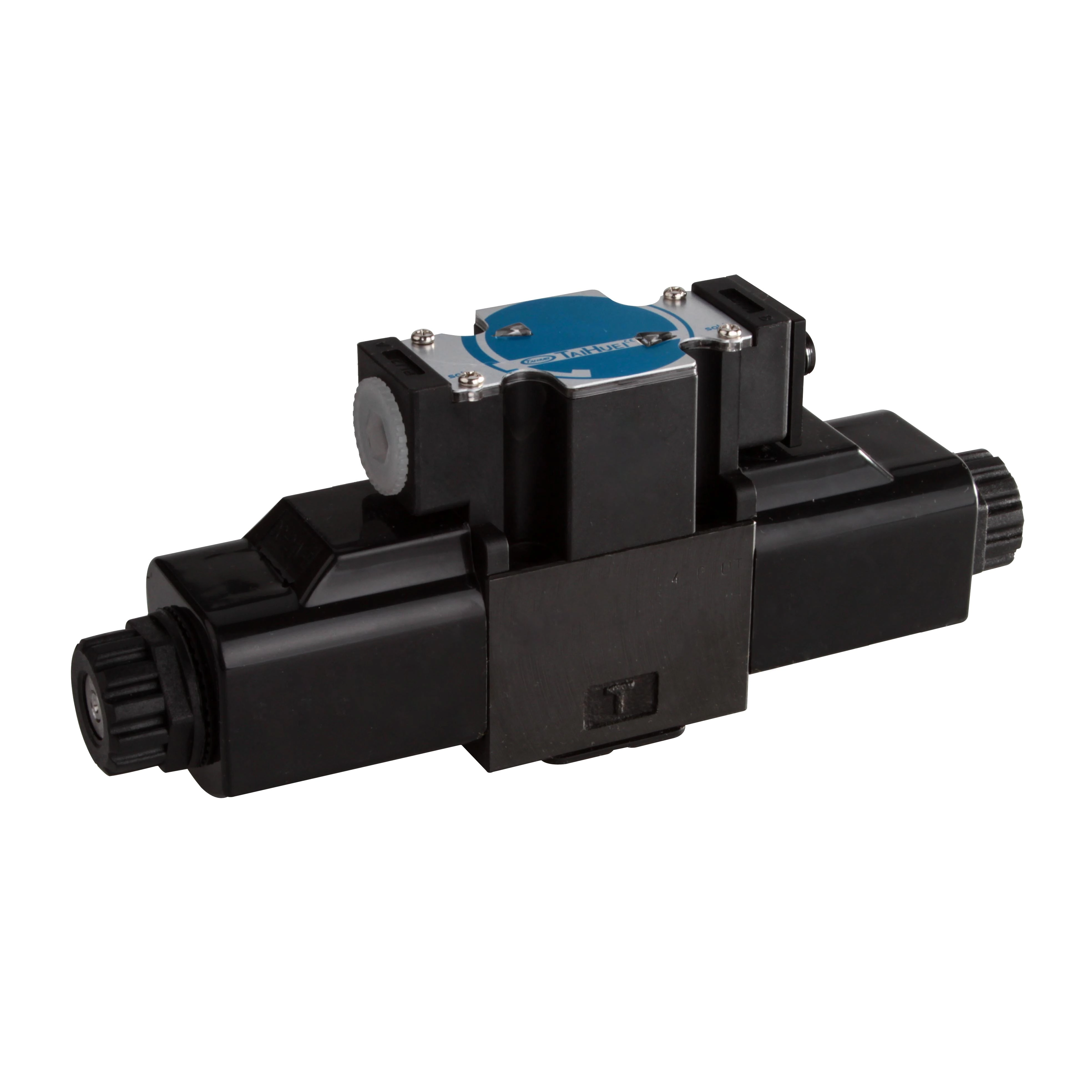

LW TERMINAL BOX TYPE
HD-***-G02-LW-DC-S (Two-Way)
Description of Model
HD | *** | G02/G03 | LW/DL | |
Directional Control Valve | Spool Type | Valve Size | Wiring Connection Type | |
High Flow Wet Pin Solenoid Direction Valve | Refer the list of Spool Function | G02 1/4"(D03)(NG06) G03 3/8"(D05)(NG10) | LW： Box Type | DL： Din Type |
B/E | S | DC/RF | ||||
Series | Special Type | Voltage(V) | ||||
B High Efficiency & Low Current Solenoid Directional Control Valve | E Standard High Flow Wet Pin Design Valve | S Soft Shift Type | DC12 | DC24 | RF110 | RF220 |
Feature
1. It designed with the dual flow control and mechanical damping.
2. The coil can reduce shock and vibration to run machine smoothly.
3. The coil improves life time with protection circuit.
4. Coil and RF connector are separate design can be replaced individually.
5. The DC connector contains a surge protector.
Notes
- The soft shift type only applies to DC, RF type coil, but without AC type.
- The tube of soft shift type can’t interchange to the general type.
- RFN coil need RF connector. Otherwise, would be a poor rectify efficiency, a poor start function and coil burnt.
View & Component
 | 02LW-DC-One-way： Weight1.5㎏ |
02LW-DC-Two-way： Weight2.0㎏ | |
 | 02DL-DC-One-way： Weight1.4㎏ |
02DL-DC-Two-way： Weight2.0㎏ | |
 | 03LW-DC-One-way： Weight4.0㎏ |
03LW-DC-Two-way： Weight5.4㎏ | |
 | 03DL-DC-One-way： Weight4.1㎏ |
03DL-DC-Two-way： Weight5.2㎏ |
G02/D03 Series How to Order
- Step 1: Spool Type
- Refer to Spool Configuration Chart
- Step 2: Coil Voltage
- AC / DC / Special Voltage
- Step 3: Wiring/Connection Method
- LW (TERMINAL BOX TYPE)
- DL (DIN PLUG TYPE)
- DT (DEUTSCH CONNECTOR TYPE)
- 2W (2W TWO WIRES TYPE)
- M4 (M12 4-Pin)
