Solenoid Direction Control Valve With Manual Switch Type And Solenoid Directional Control Valve With Adjustment Type
HD-***-G06-P-D-AB
Description of Model
HD-***-G02/G03-LW/DL-*-*
HD | *** | G02/G03 | LW/DL | * | * | ||||
Directional Control Valve | Spool | Valve Size | Wiring Connection | Series | Adjustment | ||||
High Flow Wet Pin Solenoid Directional Control Valve | Refer to List of Spool Function | G02 1/4" (D03)(NG06) G03 3/8" (D05)(NG10) | LW Box type | DL Din type | B： High Efficiency & Low current Solenoid Directional Control Valve | E： High Flow Oil Dipping Solenoid Directional Control Valve | A： A Port | B： B Port | AB： A&B Ports |
Feature
1. Adjusting nuts are made from aluminum alloy, has been anodized to protect magnetism from dust and rust.
2. Adjusting screw can be adjusted to the position quickly.
3. Adjust without tools.※G02, G03 adjustment type don’t use to regulate the flow.
HD-***-G04/G06-P-D-*
HD | *** | G04/G06 | P | D | * | |||
Directional Control Valve | Spool | Valve Size | Piloting | Draining | Valve Size | |||
High Flow Wet Pin Solenoid Directional Control Valve | Refer to List of Spool Function | G04 1/2" DN16 | G06 3/4" DN25 | P: Internal Pilot *P: External Pilot | D: Internal Drain *D: Internal Drain | A： A Port | B： B Port | AB： A&B Ports |
Feature
1. Adjusting screw is designed for accurate adjustment.
2. Adjusting screw is made from special steel and hardened with high-frequency induction.
3. The end of adjusting screw is quadrangle to adjust easily.
4. Allow to regulate the flow.
View
 | HD-***-G02-LW-*-AB-DC |
HD-***-G02-DL-*-AB-AC | |
 | HD-***-G03-DL-*-AB-DC |
HD-***-G03-LW-*-AB-AC | |
 | HD-***-G04-P-D-AB |

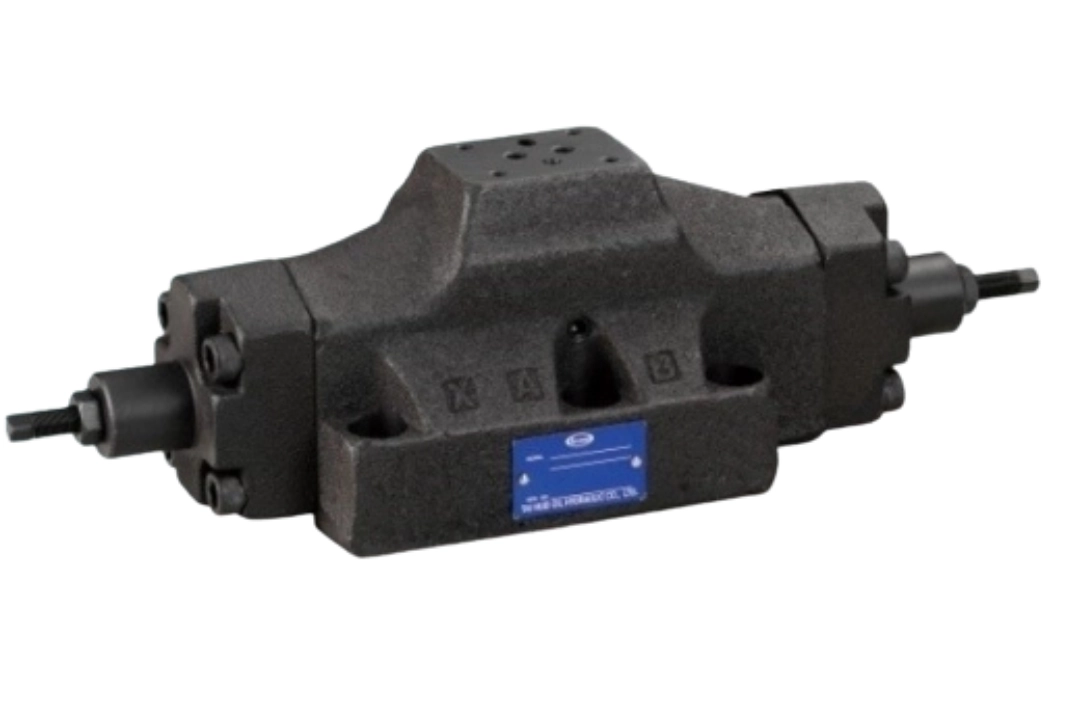

 | HD-***-G06-P-D-AB |
